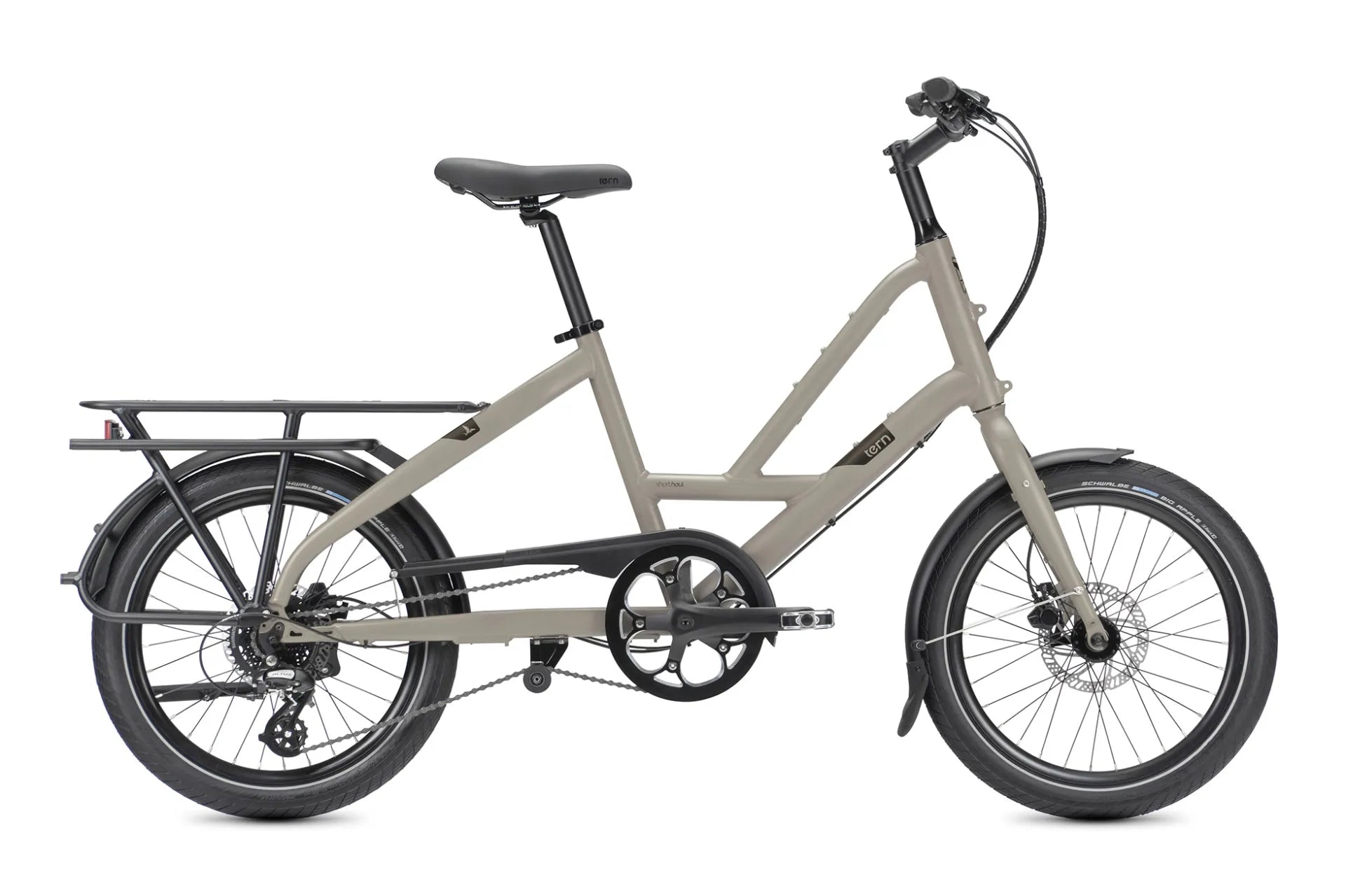

Tern Short Haul D8

Name: Tern Short Haul D8
Brand: Tern
SKU: 8155
Price: 1560.0 NZD
Availability: InStock

$1,560.00$1,580.00

Collections: Cargo Bikes, Urban

SIMPLY PRACTICAL

Compact cargo bike that carries up to 50 kg on the rear rack, plus an additional 20 kg with optional front rack
Create your ideal setup with different accessory options to carry your kid, your stuff, or even your dog
Proven safe and reliable: frame and fork are EFBE-tested up to the 140 kg Maximum Gross Vehicle Weight
Fits riders of different heights from 147 - 190 cm, weighing up to 120 kg (264 lb)
Low standover height (49 cm) makes (dis)mounting and waiting at stops easier
1x8-speed Shimano Altus derailleur with trigger shifter
Hydraulic disc brakes for great stopping power, even when carrying heavy loads

Specifications:

SPEEDS	1 x 8
WEIGHT	16.1 kg
GEAR INCHES	2.45 - 7.57 m
FRAME SIZES	One size
DISTANCE (SEATPOST TO HANDLEBAR)	60 - 64 cm
DISTANCE (SADDLE TO PEDAL)	62 - 110 cm
SUGGESTED RIDER HEIGHT	147 - 190 cm
MAX GROSS VEHICLE WEIGHT	140 kg
MAX RIDER WEIGHT	120 kg

FRAME

FRAME	Tern Short Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 140 kg
FORK	Steel, EFBE approved: 140 kg

COCKPIT

STEM	Forged, 31.8
HEADSET	TH, cartridge bearings
HANDLEBAR	Low riser, 31.8, 6061-AL
GRIPS/BAR TAPE	Velo ergonomic, lock-on
SADDLE	Velo Comfort
SEATPOST	31.6 mm, 6061-AL, micro-adjust clamp
SEATPOST CLAMP	Tern Collar

BRAKES

FRONT BRAKE	Hydraulic disc
REAR BRAKE	Hydraulic disc
BRAKE LEVERS	Hydraulic disc
BRAKE CABLE & HOUSING	Hydraulic disc

WHEELS

FRONT HUB	Disc, aluminum
REAR HUB	8 spd, disc, aluminum
SPOKES AND NIPPLES	Stainless steel
RIMS	Doublewall, for disc
TIRES	Schwalbe Big Apple, 55-406, puncture protection, Reflex

TRANSMISSION

SHIFTER(S)	1 x 8 spd, trigger
REAR DERAILLEUR	Shimano Altus
CRANKSET	Forged 6061-AL crankarm
CASSETTE/FREEWHEEL	11-34T, 8 spd
BOTTOM BRACKET	FSA, Cartridge, sealed bearings
CHAIN	KMC, 8 spd
PEDALS	Urban with non-slip surface
SHIFTER CABLE & HOUSING	SP

BELLS & WHISTLES

BELL	Aluminum
CHAINGUARD	SKS Chainblade
KICKSTAND	Pletscher design, rear mount
LUGGAGE SOCKET	Combo Mount
FENDERS	SplashGuard, stainless hardware
RACK(S)	Atlas Q Rack, 6 point mounting, Vertical Parking, 50 kg capacity
