Omnium CXC V3 │Frameset

Name: Omnium CXC V3 │Frameset
Brand: Omnium
SKU: 9742
Price: 2595.0 NZD
Availability: InStock

$2,395.00 - $2,595.00

Collections: Urban

│ Please contact us to confirm availability before purchasing online │ In stock models available from supplier, out of stock models may be available if listed on omniumcargo.com official website│

Description

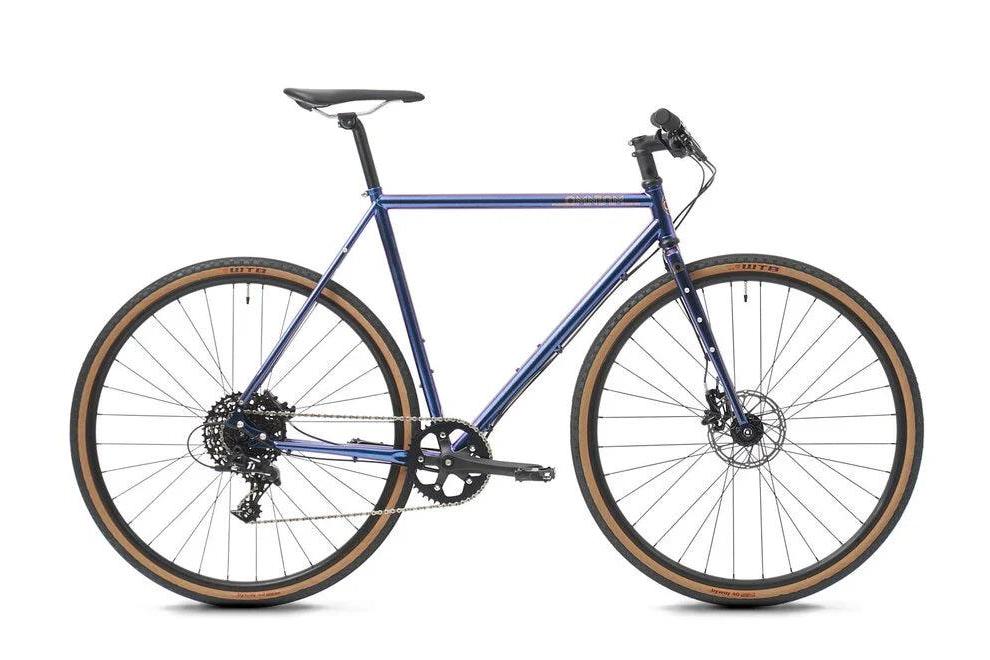

The Omnium CXC stands for Cyclo Cross City, and does just that. Commute, gravel, cyclocross, world tour, or alleycat – the CXC will work for you.

With 700x45c tire clearance and triple cage fork mounts, this thing is even adventure ready! Adjustable dropouts let you run singlespeed, fixed, Internal gear hub, or a derailleur. It‘s now also belt drive compatible!

We could go on about possibilities, but in short the CXC is a true Swiss Army knife. There is nothing more versatile.

Design

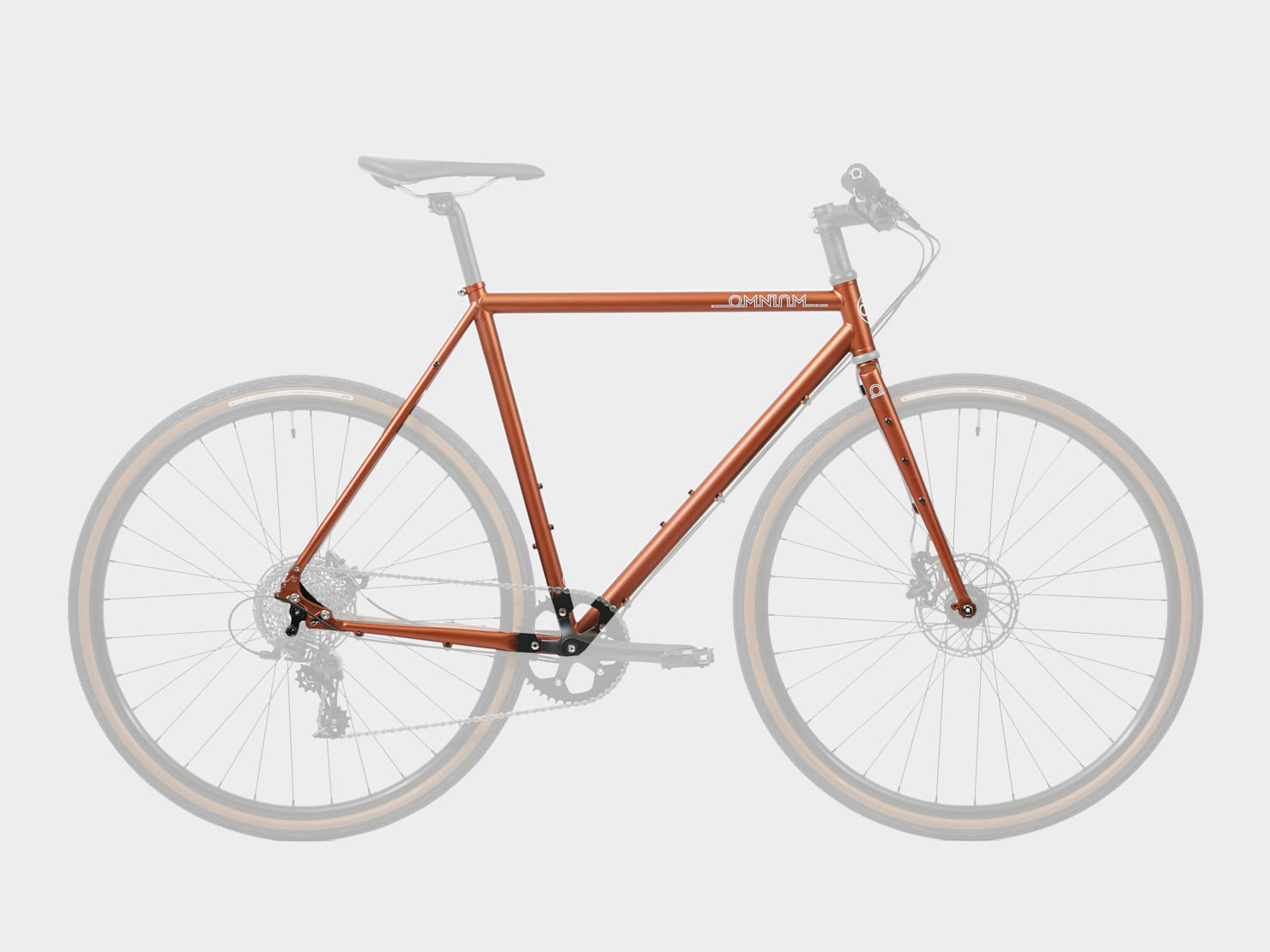

Frame Kit includes: Frame, fork, axles and seat post binder. Headset not included.

The new fork now features a segmented design, significantly reducing fork judder and flex under braking. It also has triple cage mounts on the fork legs for all your bikepacking needs.

Specifications

6 Sizes	XS (51), S (53), M(56), L (59), XL (62), XXL (64)
Material	Double-Butted Chromoly Steel Frame & Fork
Gears	For 1x rear derailleur gear system
Seat post diameter:	27.2mm
Rear Wheel:	TA Insert: 622, 12 x 142mm spacing, disc only QR Insert: 622, 10 x 135mm spacing, disc only
Front Wheel:	622, 12 x 100mm spacing, disc only
Tyre clearance, front:	45mm clearance with mudguards
Tyre clearance, rear:	45mm clearance with mudguards (50mm chainstay clearence)
Thru Axle Rear	12×142, 172mm long, 19mm thread length, 1.75mm pitch
Thru Axle Front	12×100, 125mm, 17mm thread length, 1.5mm Pitch
Headset:	1 1/8″ Ahead
Bottom Bracket:	68mm BSA
Brake Mounts:	IS brake mount front and rear, for minimum 160mm and max 180 rotors
Q-Factor	145mm
Recommended maximum loading weight including rider:	100 kg

Frameset

Frameset
Includes

– Frame
– Fork
– Seatpost Binder Nut
– 12mm Rocker Inserts
– Thru axles Front and Rear

Frameset does NOT include a headset.

Geometry

CXC V3	XS (51)	S (53)	M (56)	L (59)	XL (62)	XXL (64)
STL – seat tube length (c-t)	510	530	560	590	620	640
TTL – top tube length (c-c / actual)	520	535	555	575	595	610
Stack	497	512	543	573	602	617
Reach	395	402	409	422	434	434
SOH – standover height	782	797	828	858	888	902
BBD – bottom bracket drop	58	58	58	58	58	58
STA – seat tube angle	76°	75.5°	75°	75°	75°	74°
HTA – head tube angle	73.5°	74°	74.5°	75°	75°	75°
HTL – head tube length	66	80	110	140	170	185
WB – wheelbase	977	985	996	1012	1032	1036
A-C – axle to crown	396	396	396	396	396	396
R – rake	45	45	45	45	45	45
T – trail	58	55	52	49	49	49
CSL – chainstay length	410-427	410-427	410-427	410-427	410-427	410-427

Sizings

Height: 155 – 165cm — we recommend — size X-Small
Height: 165 – 175cm — we recommend — size Small
Height: 175 – 185cm — we recommend — size Medium
Height: 185 – 195cm — we recommend — size Large
Height: 195 – 205cm — we recommend — size X-Large
